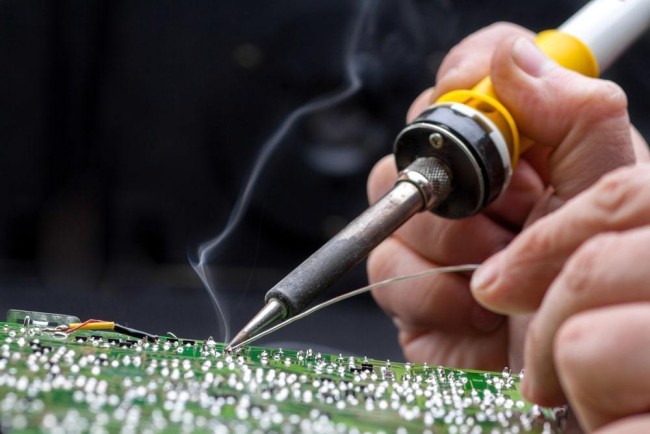

A broken logic board. A dead smartphone. A cracked connector invisible to the naked eye. Somewhere in that silence, the micro-soldering method begins its quiet work. It’s a technique reserved for those who tame circuits smaller than a grain of rice, who breathe life back into electronics others have already buried.
Micro-soldering stands as the invisible art behind modern device repair — a method neither flashy nor loud, but precise and mercilessly detailed.
In this intricate process, the repair technician doesn’t just replace parts; they resurrect functionality at the micro level. Beneath the microscope, wires, chips, and joints fuse with near-surgical precision.
This article unfolds every layer of micro-soldering — what it means, how it works, what tools breathe precision into it, and why it matters for today’s gadget-heavy world.
Understanding the Micro-Soldering Method
Micro-soldering is the process of repairing or connecting electronic components on circuit boards where the parts are minuscule — often less than a millimeter apart. Traditional soldering irons look like sledgehammers next to the fine needles used here.
In practice, it involves heating solder — a tin-based metal alloy — to bond delicate connections between pads, traces, and components under a microscope. The technique helps revive damaged motherboards, fix broken connectors, and restore chips that control displays, touch inputs, or even power management systems.
Smartphones, tablets, laptops, and game consoles all rely on this method when something deep inside the board goes wrong. Instead of replacing the entire circuit board, a trained professional targets the exact faulty point, saves costs, and prevents unnecessary waste.
The process demands steady hands, sharp vision, and absolute patience. A single blink at the wrong second can bridge circuits and fry the entire board.
How Micro-Soldering Works
The micro-soldering method unfolds in deliberate stages — preparation, diagnosis, isolation, soldering, and testing. Each stage serves as a guardrail between success and total short-circuit failure.
1. Preparation
Every micro-soldering session begins with cleaning. Dust, flux residue, or oxidation can ruin a joint instantly. The workspace must be spotless, anti-static, and well-lit. The circuit board rests on a heat-resistant mat, ready for inspection.
The technician uses magnification tools — digital microscopes or stereo scopes — to identify the damaged area. Once found, flux (a chemical that improves solder flow) is carefully applied to ensure even wetting of the surfaces.
2. Diagnosis
Diagnosis forms the heart of the method. Multimeters, power supplies, and schematics help detect breaks, shorts, or blown components. Sometimes the issue hides beneath a ball grid array (BGA) chip — tiny solder balls connecting the chip to the board. Thermal cameras often help locate hot spots signaling faulty joints or burned traces.
3. Isolation
Once the target zone is confirmed, the damaged component is isolated using hot air stations or preheaters. The air temperature must be controlled to avoid warping the board. For chips, temperature profiles are followed — heating from beneath, softening solder bonds, then gently lifting the component with fine tweezers.
4. The Soldering Itself
Here lies the craft’s soul. The soldering iron tip barely touches the metal pads, guiding molten solder to rejoin circuits. For micro BGA work, reballing comes into play — reattaching new solder balls under a chip before reseating it on the board.
Lead-free solder is often used in compliance with environmental standards. However, it melts at a higher temperature, demanding extra precision and heat control.
5. Testing and Verification
Once the repair is done, microscopic inspection ensures no bridges, cold joints, or loose traces remain. The board undergoes functional testing — sometimes under simulated conditions using bench power. If it boots, the soldering holds. If not, the hunt begins again.
Essential Tools for Micro-Soldering
Micro-soldering doesn’t forgive poor equipment. Every tool has a purpose; every detail matters. The quality of results depends less on brand prestige and more on calibration and skill.
1. Microscope
A microscope magnifies the battlefield. Binocular or trinocular models allow direct viewing or camera connection for screen display. A magnification range of 5x–45x is typical, revealing every joint, trace, and imperfection.
2. Soldering Iron and Tips
A precision soldering station — temperature controlled, quick to recover heat, and compatible with ultra-fine tips — forms the technician’s right hand. Tip shapes vary: conical for pinpoint heat, bevel for drag soldering, and chisel for pad rework.
3. Hot Air Rework Station
Used for heating components without direct contact. It allows desoldering and reflowing of surface-mounted devices (SMDs). Adjustable airflow and nozzle sizes control temperature spread.
4. Flux and Solder Wire
Flux cleans and promotes adhesion. Solder wire comes in diameters as thin as 0.2 mm, often with rosin cores for smoother flow. Excess flux must be cleaned post-soldering using isopropyl alcohol and lint-free wipes.
5. Preheater or Rework Plate
Preheating prevents board warping and evenly distributes heat. It’s especially crucial for multilayer PCBs where uneven heating can damage internal traces.
6. Tweezers and Micro Tools
Fine-tipped anti-static tweezers, micro-spatulas, and mini vacuum pickup tools make the difference between success and short circuits.
7. Multimeter and Oscilloscope
Electrical diagnostics rely on these instruments to measure resistance, continuity, voltage, and waveform integrity. They ensure that repairs aren’t just cosmetic but electrically sound.
Common Applications of Micro-Soldering
Micro-soldering has become the unseen savior in modern electronics. From high-end smartphones to industrial boards, it plays a crucial role where modular replacement fails.
Smartphone and Tablet Repair
Charging ports, touch IC chips, audio circuits, and backlight filters — these are the usual suspects. Micro-soldering restores devices most repair shops discard.
Laptop Motherboards
Faulty GPU connections, burned power rails, and loose USB controllers often need reballing or trace reconstruction — both achievable through micro-soldering.
Data Recovery
When storage chips like NAND or eMMC fail, micro-soldering allows extraction by removing and reading the chips directly through specialized programmers.
Console and Gaming Devices
HDMI ports and controller ICs on consoles often fracture due to stress. Skilled rework under the microscope restores video output without replacing the entire board.
Automotive Electronics
With vehicles relying heavily on embedded control units, micro-soldering helps revive malfunctioning circuits that handle engine, brake, or sensor functions.
Safety and Precautionary Measures
Micro-soldering may look gentle, but one mistake can cause irreversible damage. Safety here extends beyond personal protection — it covers both the technician and the device.
Static Control
Electrostatic discharge (ESD) can destroy sensitive chips instantly. Anti-static mats, wrist straps, and grounded tools protect against invisible static surges.
Ventilation
Flux fumes can irritate the respiratory system. Fume extractors or filters should always run near the workspace.
Temperature Management
Excessive heat burns components. Insufficient heat causes cold joints. Mastery lies in balancing temperature, airflow, and contact time.
Proper Lighting and Posture
Strained eyes lead to mistakes. Diffused LED lights with adjustable brightness help reduce glare under the microscope. The technician’s posture must also remain steady — shaking hands can mean disaster.
Challenges in Micro-Soldering
The micro-soldering method tests both patience and nerve. Some challenges are technical; others are psychological.
1. Miniaturization of Components:
With each generation, electronics grow smaller. Pads shrink, traces narrow, and component density increases. The margin for error nearly disappears.
2. Heat Sensitivity:
Microchips can’t withstand prolonged exposure to high temperatures. Excess heat leads to delamination or burnt internal layers.
3. Accessibility:
Certain components hide beneath shields or under other chips, demanding disassembly layers deep before access is possible.
4. Equipment Costs:
High-grade microscopes and soldering stations aren’t cheap. For many small repair businesses, it’s a costly investment requiring consistent skill to justify.
5. Human Error:
Even trained technicians misjudge angles, pressure, or heat application. One wrong move can create invisible micro-cracks that fail later.
Advantages of the Micro-Soldering Method
Despite the challenges, the micro-soldering method remains the preferred path for high-precision electronic repair and restoration.
1. Cost Efficiency:
Replacing a single chip or connector is far cheaper than replacing the entire board.
2. Environmental Impact:
Less e-waste generated since boards get repaired instead of discarded.
3. Restoration of Irreplaceable Data:
Data recovery through micro-soldering helps salvage memories and information locked within damaged circuits.
4. Precision Repairs:
The method enables pinpoint accuracy that no standard soldering approach can match.
5. Longevity and Reliability:
Properly reworked joints often last as long as, or longer than, the original factory connections.
Future of Micro-Soldering
As devices continue shrinking, micro-soldering evolves alongside them. Automation and artificial vision now join the process, helping reduce manual fatigue and increase accuracy. Robotic rework stations guided by AI already perform micro-soldering under computer control — adjusting temperature, positioning, and timing automatically.
However, human craftsmanship still rules the bench. Machines might mimic precision, but they can’t yet replicate the instinct born from thousands of boards repaired and hundreds of mistakes corrected.
In the coming years, expect hybrid systems — part human intuition, part automation — dominating high-end circuit restoration. Training programs are growing, and the demand for skilled micro-soldering specialists continues to rise globally.
Conclusion
Micro-soldering stands at the frontier of electronic survival. A practice that’s equal parts science and patience, it saves devices destined for the scrap heap.
Beneath the microscope, a technician’s hand steadies over circuits invisible to the naked eye — re-establishing the pulse of electricity through shattered paths.
From smartphones to automotive boards, from console repairs to industrial systems, the micro-soldering method ensures that precision continues where mass production stops. It’s not a trade of spectacle but of quiet mastery — the kind that keeps the digital world breathing when everything else fails.
